200TPD Pure Water Reverse Osmosis System

 Tip: Click on image to enlarge

Product Description

Reverse osmosis pure water treatment equipment is to desalinate tap water into drinking water. pure water series has won the favor of customers because of its high treatment capacity, small volume, exquisite and chic appearance, convenient installation and operation, etc.

The reverse osmosis technology of the equipment is designed by using special RO technology.

The key components are imported famous brand products, advanced technology, reliable quality, strong expansibility, reasonable structure, small occupation of land, high water utilization rate, low energy consumption, fully automatic operation, simple operation and maintenance.

Product Parameters

200TPD Pure Water Reverse Osmosis System
Model WY-TW-200
Water yield 200TPD
Desalination rate
Output water saltness <50mg/L
Recovery rate
75%(Depending on temperature and inlet water quality)
Operation pressure <3Mpa
RO Membrane
Pressure vessel
AC380V / 50Hz / Three phase
Protection grade
20 feet container
Material composition
SUS304 Stainless steel

* 1. Equipment can be customized according to customer requirements.

System function

1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.

4.Matching ultraviolet sterilizer to ensure water quality.

Main accessories

● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS/ VONTRON brand

● Pressure vessel: FRP material

● Feed Pump: Grundfos/ CNP brand

● High Pressure Pump: CNP brand

● Conductivity Meter: Createc

● Electric Element: Schneider brand or equivalent

Equipment list

1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories

Please contact us for more details.

Mobile: +86 133 2668 2480(Steve)

                     +86 133 2665 7486(Abey)

Whatsapp: 137 9898 8771(Steve)

                           159 1922 3536(Abey)

Email: steve@zhwywater.com

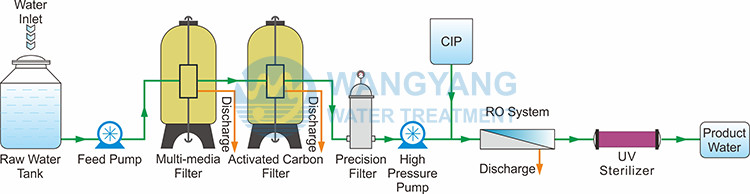

Process flow diagram

Features and advantages

● High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
● High-quality reverse osmosis membrane with a salt rejection rate of 99.8%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.

● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.

● Wide range of power supply: 220V~440V/50~60HZ.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.

Reverse Osmosis Technology

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.

Applicable field

Drinking Water Water for food and beverage industry Industrial production water

Power industry boiler feed water Pharmaceutical industry water Building, school water supply
