216 Tons/Day Pure Water Treatment Equipment for Food and Beverage Production

 Tip: Click on image to enlarge

Product Description

Pure Water Treatment Equipment for Food and Beverage Production

Food and beverage pure water equipment is to desalinate groundwater into pure water to meet customer industry water requirements.

The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma that is harmful to the human body.

The produced water can be directly used for the production water of food and beverage through the post-treatment system of ultraviolet sterilizer and ozone generator.

The overall skid-mounted design of the equipment, multi-media filter, activated carbon filter, pipeline and valve are all stainless steel, which can be fully automated and easy to operate and maintain.

Product Parameters

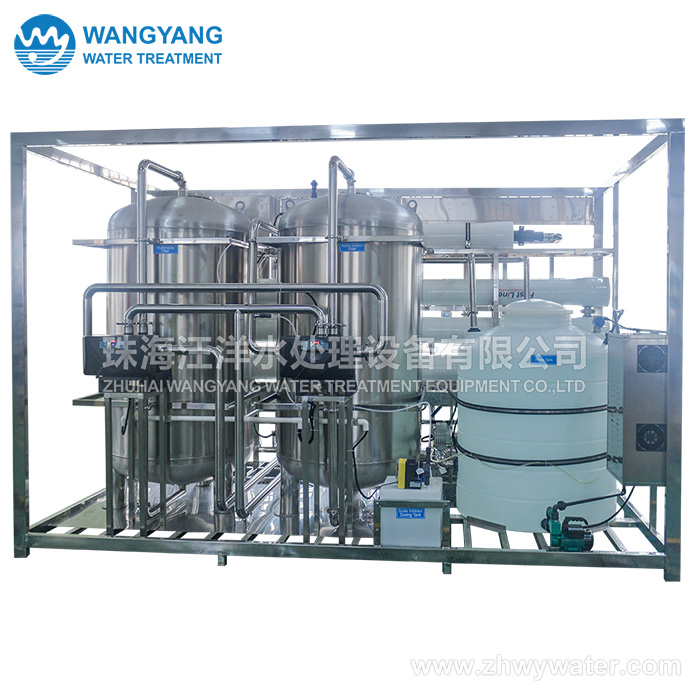

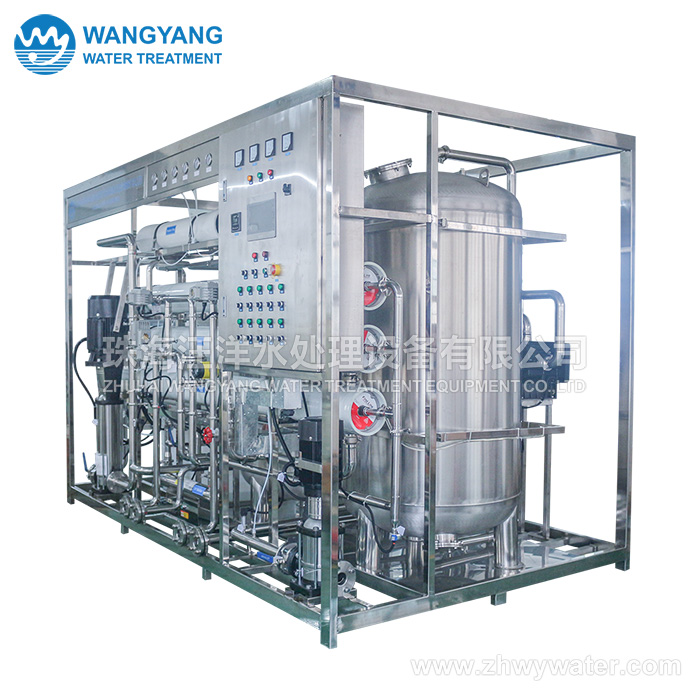

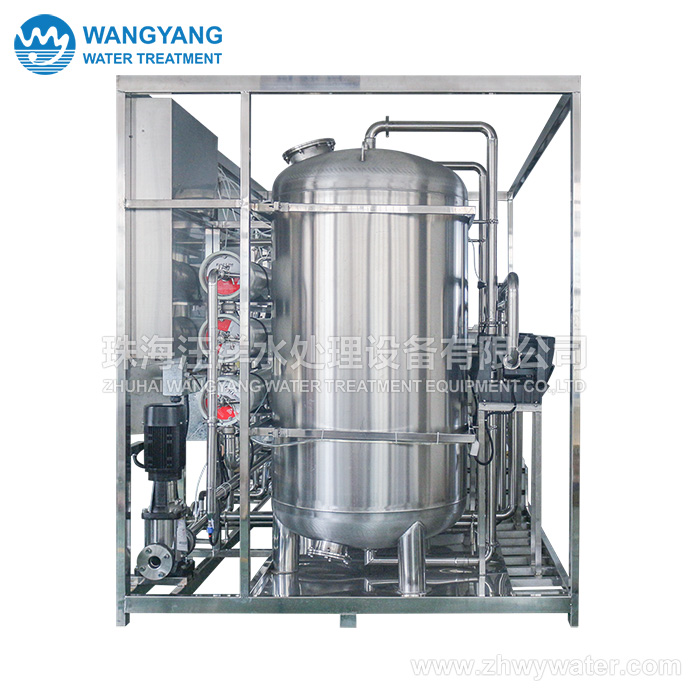

216 Tons/Day Pure Water Treatment Equipment
Model WY-TW-216
Water yield 216 Tons/Day(9 Tons/Hour)
RO product water quality
Desalination rate
Raw water quality TDS<700mg/L
Recovery rate
75%(Depending on temperature and inlet water quality)
Operation pressure 1~1.5Mpa
RO Membrane
9 pcs
Pressure vessel
3 pcs
AC380V / 50Hz / Three phase
Protection grade
Net weight

* 1. Equipment can be customized according to customer requirements.

System function

1. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
2. The pretreatment is equipped with an automatic control multi-way valve, and the multi-media filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
3. The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning and filling of the reverse osmosis membrane module.


Main accessories

● Reverse Osmosis Membrane: USA DOW/ TORAY/ HYDRANAUTICS/ GE brand

● Pressure vessel: FRP material

● Feed Pump: CNP brand

● High Pressure Pump: CNP brand

● Conductivity Meter: Createc

● Electric Element: Schneider brand or equivalent

● UV Sterilizer: 15 Tons/Hour

● Ozone Generator: 15 Tons/Hour


Equipment list

1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories

Please contact us for more details.

Mobile: +86-13326682480

Wechat: 13798988771

Email: steve@zhwywater.com

Component drawing:

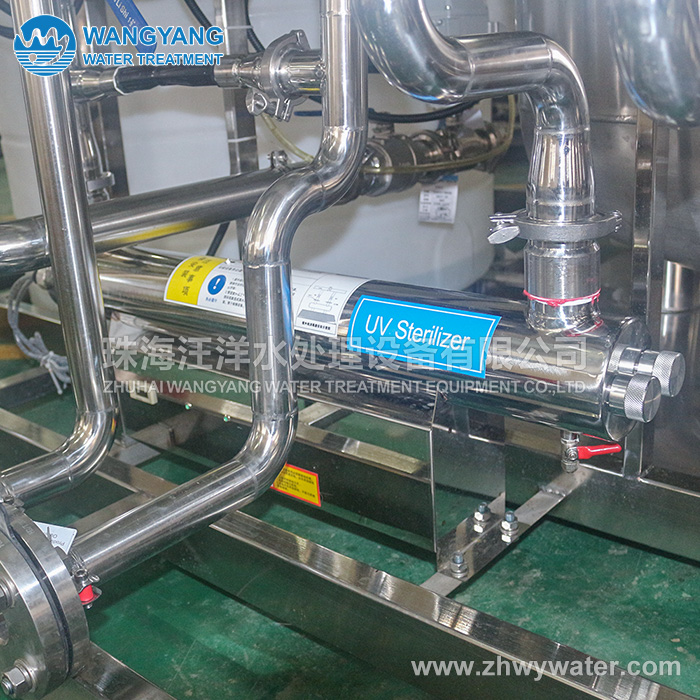

Control Box UV Sterilizer Ozone Generator

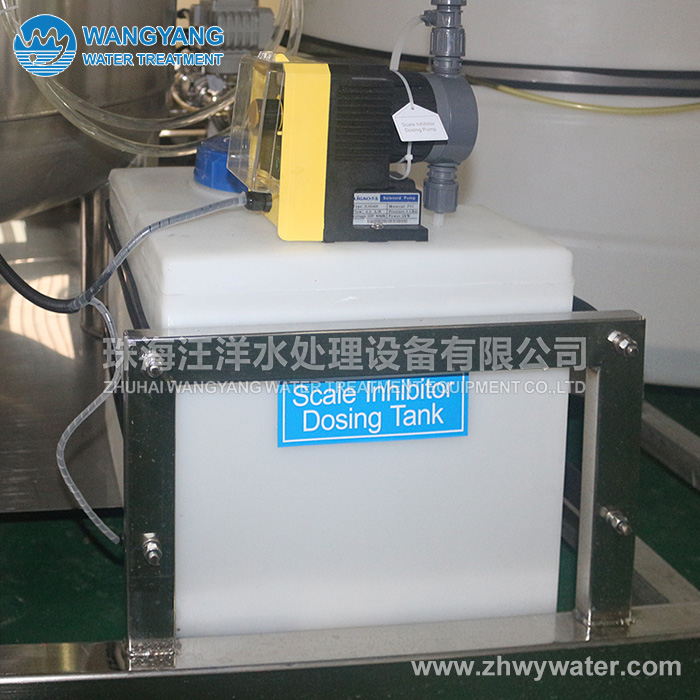

Dosing System Filter Automatic Control Multi-way Valve Rinse Tank

Process flow diagram

Features and advantages

● High quality imported high pressure pump with high operating efficiency, low energy consumption and long service life.
● High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel materials to ensure long-lasting equipment and low maintenance costs.

● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.

● Wide range of power supply: 220V~440V/50~60HZ.
● RO product water quality: TDS<10mg/L.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.

Reverse Osmosis Technology

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.

Applicable field

Drinking Water Water for food and beverage industry Industrial production water

Power industry boiler feed water Pharmaceutical industry water Building, school water supply
