10 Tons per day Automatic Intelligent Seawater Desalination System

 Tip: Click on image to enlarge

Product Description

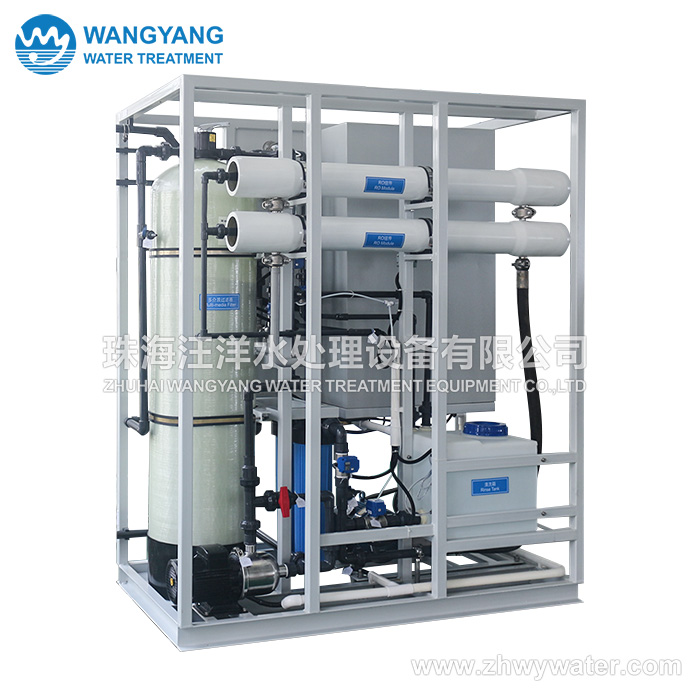

Automatic Intelligent Seawater Desalination System


The Automatic Intelligent Seawater Desalination System adopts the international advanced reverse osmosis technology and is designed by optimizing the system.


The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022) TDS<500mg/L.


The low-noise, high-capacity small-scale desalination equipment provides a comfortable environment and unlimited fresh water for your navigation. Having a small seawater desalination equipment with light weight, low energy consumption and smooth operation will make your sailing faster, farther and more comfortable. You don't need to plan to dock the ship at the small port, but directly to the purpose, and no need to prepare fresh water to create more added value for you.



Product Parameters

Automatic Intelligent Seawater Desalination System
Model WY-SW-10
Water yield 417 Litres per hour
RO product water quality
National Standard for Drinking Water(GB5749-2022)
Desalination rate
>98.5%
Output water saltness <500mg/L
Recovery rate
28%(Depending on temperature and inlet water quality)
Operation pressure <6.5Mpa
Power
4.75KW
Voltage
AC380V / 50Hz / Three phase
Protection grade
IP54
Dimensions
1400*700*1900 mm
Net weight
310Kg
Material composition
SUS316 Stainless steel


* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 35,000 mg/L, and an operating pressure of 5 MPa.
   2. Equipment can be customized according to customer requirements.


System function

1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
3. The pre-treatment is equipped with an automatic multi-way valve for large-flow backwashing and full washing.
4. Configure the reverse osmosis membrane cleaning system to physically clean, chemically clean and refill the reverse osmosis membrane module.


Main accessories

● Feed Pump: SUS316L, CNP brand

● Multimedia Filter: Ø400x1650mm, FRP, 1pcs

● Security Filter20" x 10μm, UPVC

● Precision Filter: 20" x 5μm, UPVC

● High Pressure Pump: SUS316L, Diamond / PINFL brand

● Reverse Osmosis Membrane: 4040, USA DOW/ TORAY/ HYDRANAUTICS brand

● Membrane Housing: FRP, 2pcs

● Rinse Tank: 31L

● CIP Chemical Cleaning Device: System matching

● Conductivity Meter: Createc

● Electric Element: Schneider brand or equivalent

● High pressure pipeline: High pressure 2205 duplex steel

● Low pressure pipeline: PVC, SANKING brand


Equipment list

1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories



Please contact us for more details.


Mobile: +86 133 2668 2480(Steve)

                     +86 133 2665 7486(Abey)

Whatsapp: +86 137 9898 8771(Steve)

                           +86 159 1922 3536(Abey)

Email: steve@zhwywater.com

                    abey@zhwywater.com


Process flow diagram



Features and advantages

● High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.

● High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.

● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.

● Easy to install and easy to migrate: the production and assembly of skid-mounted equipment are completed in the factory, the field installation work is less, only need to complete the interface pipeline and external electrical connection to work; because the functional components are integrated in a whole base Can be easily migrated as a whole.


● Wide range of power supply: 220V~440V/50~60HZ.
● RO product water quality standard: in line with national drinking water standard <GB5749-2022>.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.


Recommended Products




1TPD Seawater Desalination Equipment

3TPD Seawater Desalination Equipment

5TPD Seawater Desalination Equipment




15TPD Seawater Desalination Equipment

20TPD Seawater Desalination Equipment

50TPD Seawater Desalination Equipment




20TPD Two-stage RO Seawater Desalination Equipment

72TPD Seawater Desalination Equipment

144TPD Seawater Desalination Equipment




200TPD Seawater Desalination Equipment

360TPD Seawater Desalination Equipment

1200TPD Seawater Desalination Equipment



Customer Cases

For fishing boats

Small desalination machine

Offshore work platform

RO fresh water generator

Shipyard

Seawater desalination unit


Philippine Islands

Seawater desalination equipment

Aquiculture

Container seawater desalination system

Sea sand desalination

Modular seawater desalination equipment


Reverse Osmosis Technology

The reverse osmosis membrane is an artificial semipermeable membrane made of a semi-permeable membrane that has certain characteristics and is a core component of reverse osmosis technology.

The principle of reverse osmosis technology is to remove these substances and moisture according to the osmotic pressure of the solution, according to the fact that other substances cannot pass through the semipermeable membrane. The membrane pore size of the reverse osmosis membrane is very small, so that dissolved salts, colloids, microorganisms, organic matter, and the like in the water can be effectively removed.

The system has the advantages of good water quality, low energy consumption, no pollution, simple process and easy operation.
