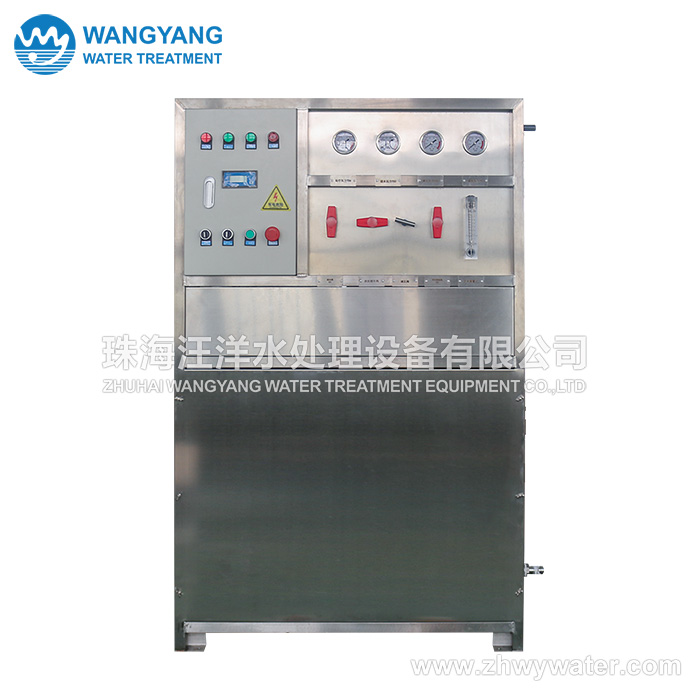

2TPD Seawater Desalination Equipment

 Tip: Click on image to enlarge

Product Description

The seawater desalination equipment adopts the international advanced reverse osmosis technology and is designed by optimizing the system.


The system can effectively remove inorganic salts, heavy metal ions, organic bacteria, bacteria and other harmful components in seawater, and desalinate seawater into high-quality water in accordance with the National drinking Water Sanitation Standard (GB5749-2022).


Product Parameters

2TPD Seawater Desalination Equipment
Model WY-FSHB-2
Water yield 2m3/day
RO product water quality
National Standard for Drinking Water(GB5749-2022)
Desalination rate
>98.5%
Output water saltness <700mg/L
Recovery rate
18%(Depending on temperature and inlet water quality)
Operation pressure <6.5Mpa
Power
2.05KW
Voltage
AC380V / 50Hz / Three phase
Protection grade
IP54
Dimensions
900*440*1600 mm
Net weight
160Kg
Material composition
SUS316 Stainless steel


* 1. The amount of water produced refers to the amount of water produced under the conditions of an inlet water temperature of 25 ° C, a salt content of 35,000 mg/L, and an operating pressure of 5 MPa.
   2. Equipment can be customized according to customer requirements.


System function

1. High-pressure unloading, when the high-pressure pump outlet pressure exceeds 6.2MPa, the equipment automatically stops and protects and emits an audible and visual alarm.
2. Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
3. The pre-treatment is equipped with an manual multi-way valve for large-flow backwashing and full washing.
4. Configure the reverse osmosis membrane cleaning system to physically clean, chemically clean and refill the reverse osmosis membrane module.


Main accessories

● Feed Pump: SUS316, CNP brand

● Multimedia Filter: Ø200x1100mm, FRP, 1pc

● Security Filter10" x 10μm, UPVC

● Precision Filter: 10" x 5μm, UPVC

● High Pressure Pump: SUS316, HAWK brand

● Reverse Osmosis Membrane: 4040, 1pcs, USA DOW/ TORAY/ HYDRANAUTICS/ GE brand

● Membrane Housing: 4040, FRP, 1pcs, FirstLine brand

● Rinse Tank: 8L

● CIP Chemical Cleaning Device: System matching

● Conductivity Meter: Createc

● Electric Element: Schneider brand or equivalent


Equipment list

1. Water treatment equipment
2. User manual, Operation video*
3. Final document (product certificate, factory test report, packing list, equipment drawing)
4. Other consumables accessories



Please contact us for more details.


Mobile: +86-13326682480

Wechat: 13798988771

Email: steve@zhwywater.com



Process flow diagram



Features and advantages

● High quality imported high pressure pump with high operating efficiency, low energy consumption, low noise and long service life.
● High-quality reverse osmosis membrane with a salt rejection rate of 98.5%, strong anti-pollution ability and stable water quality.
● Rack piping and fittings are made of stainless steel and corrosion-resistant materials to ensure long-lasting equipment and low maintenance costs.

● The operation is simple and easy to use, and the maintenance is convenient. As long as there is electricity, there is sea water, and fresh water can be supplied immediately after the pipeline is started.

● Wide range of power supply: 220V~440V/50~60HZ.
● RO product water quality standard: in line with national drinking water standard <GB5749-2022>.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance costs.
● The type of equipment combination can be realized: bracket type, armored type, brake type, container type, etc.
